Double Suspensions For ADSS (ASXC)

The double suspension components improve load carrying capacity of the clamp, increase curvature radius, guarantee the safety and reliability of the cable operation under the situations of greater line angle, higher fall, bigger span.
  • /images/up_images/201652722958.jpg

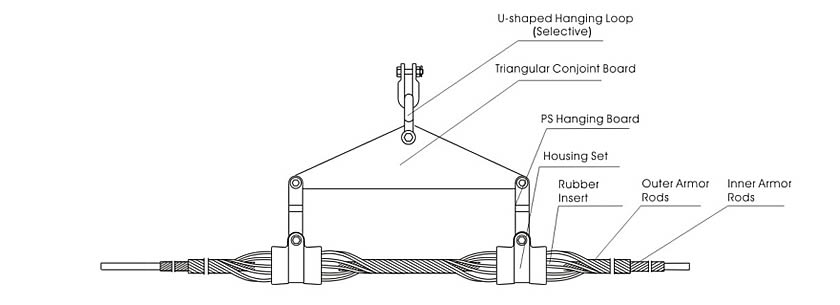

Component
Inner armor rods, outer armor rods, rubber clamp piece, cover shell, U-shaped hanging loop, PS hanging board, triangular conjoint board, bolt, nut, etc.

Characteristic
1. It has all capabilities and performances that single suspension has.
2. The double suspension components improve load carrying capacity of the clamp, increase curvature radius, guarantee the safety and reliability of the cable operation under the situations of greater line angle, higher fall, bigger span.

Conditions for the usage
Special situations such as rivers with greater span, valleys with higher fall, the poles/towers whose line angle can be extended to 60° .The angle of single-side suspension is between 30° - 36°.

Intensity
70kN, 100kN, 120kN

Description

Model Cable Diameter (m) Length of Inner Armor Rods(mm) Length of Outer Armor Rods(mm) Distance to the Center(mm) Estimated Weight (KG) Color
ASXC-1 ** 9.0-14.4 2260 1660 460 13.2 Red
ASXC-2-** 14.5-15.9 2360 1760 560 15.2 Red
ASXC-3-** 16.0-20.0 2660 2060 660 17.2 Red
ASXC-4-* * 20.1-21.7 2760 2160 660 18.2 Red

Note: Representing the outer diameter of the optical cable (mm).
