Dead-End For OPGW

Inner armor rods, outer armor rods, thimble, U-shaped hanging loop, Extensioe Rods, bolt, nut, Characteristic
  • /images/up_images/2016527205150.jpg
  • /images/up_images/2016527205150.jpg

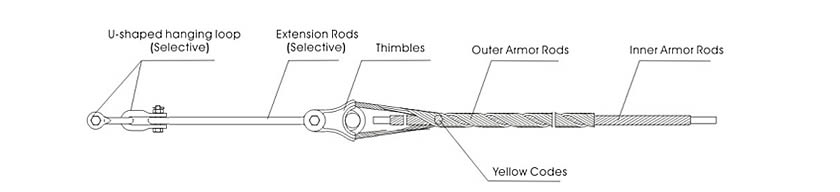

Component
Inner armor rods, outer armor rods, thimble, U-shaped hanging loop, Extensioe Rods, bolt, nut, Characteristic
1. Stress is distributed equally, without stress focus. It can protect optical cabl-es very well.
2. Under the condition of not exceeding the intensity of cable's side pressure, it has higher grip power for the cable, and can support higher tensile force.
3. The grip power for the cable is not less than 95% of rating's pulling resisting intensityof the optical cable, completely satisfying the needs of setting up the cable
.
Conditions for the usage
1. Terminal poles/towers;
2. Corner poles/towers;
3. Dead-end poles/towers;

Intensity
According to the requirement of customers, 30kN, 70kN, 100kN, 120kN, etc, can be supplied.

Description

Model Grip(KN) Suggested Span(m) Length of Inner Armor Rods(mm) Length of Outer Armor Rods(mm) Estimated Weight (KG) Color
ANZ-16-* * 16 100 1300 1000 2.7 Yellow
ANZ-25-* * 25 101 -200 1700 1300 3.4 Yellow
ANZ-30-* # 30 201 -300 1900 1500 3.9 Yellow
ANZ-40-* # 40 301 -400 2100 1700 4.1 Yellow
ANZ-50-* # 50 401 -500 2300 1900 4.5 Yellow
ANZ-60-* # 60 501 -600 2200 1700 4.8 Yellow
ANZ-70-* # 70 601 -800 2700 2200 5.0 Yellow
ANZ-80-* # 80 801 -1000 2800 2400 5.5 Yellow

Note: representing the outer diameter of the optical cable (mm).
